Chapter 13: Overview of RAID Reconstruction

Software RAID

Software RAID is created in Windows Disk Manager. In the screen snapshot below drive D: is a software RAID 0 (striped volume) composed of two 18.68-GB disks.

A software-based RAID

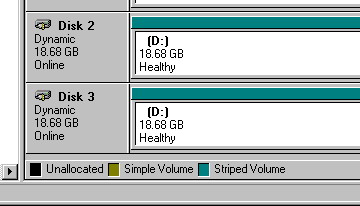

Figure 13.2: A software-based RAID.

Drive D in Figure 13.2 is shown as a striped volume

Figure 13.3: Drive D in Figure 13.2 is shown as a striped volume.
